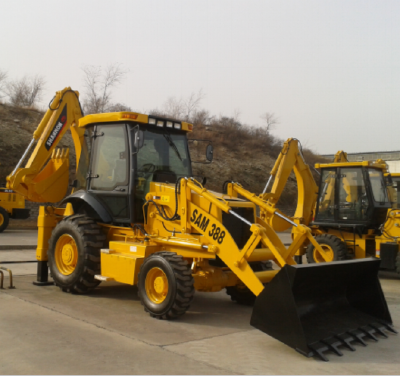

China High specifications backhoe loader
Main specifications:Cummins engine(4BTA3.9-C100)、Fixed shaft power shift transmission 、 Feicheng Axle、A/C、Polit control.
More parameters of QG388 backhoe loader:
Engine | ||
Brand | Cummins | |
Mode | 4BTA3.9-C100 | |
Rated Power(KW) | 74kw/100 hp | |
Rated Rotating Speed (rmp) | 2200 | |
Displacement（L） | 3.9 | |
| ||
（°）maximum gradient capacity | 30 | |
（mm）minimum turning radius | 5482 | |
backhoe | （m3）backacter bucket capacity | 0.3 |
| （kN）bucket digging capacity | 46.5 |
| （mm）maximum digging depth | 4082 |
| （mm）backacter discharge height | 3800 |
| （mm）maximum digging radius | 5688 |
| （°）Bucket maximum Angle | 180 |
| （°）bucket slewing angle | 180 |
loader | （m3）loading bucket capacity | 1 |
| （kN） maximum breakout force | 38 |
| （mm）bucket discharge height | 2742 |
| （mm）bucket discharge distance
| 1062
|
L×W×H（mm） | 7470*2295*2983 | |
torque | YJ280 | |
peak efficiency | 84.4% | |
model of hydraulic pum
| fixed shaft power shift transmission | |
service braking | air over hydraulic disc on 4 wheels | |
parking brake | manual parking brake | |
Oil Pressure of Clutch | 1373Kpa — 1569 Kpa | |
Gears | Two Gears Ahead, Two Gears Astern | |
Max.Speed | 22Km/h | |
Tyre | ||
Model | 14-17.5/19.5L-24 | |
Pressure of Front wheel | 0.22 Mpa | |
Pressure of Back Wheel | 0.22 Mpa | |
